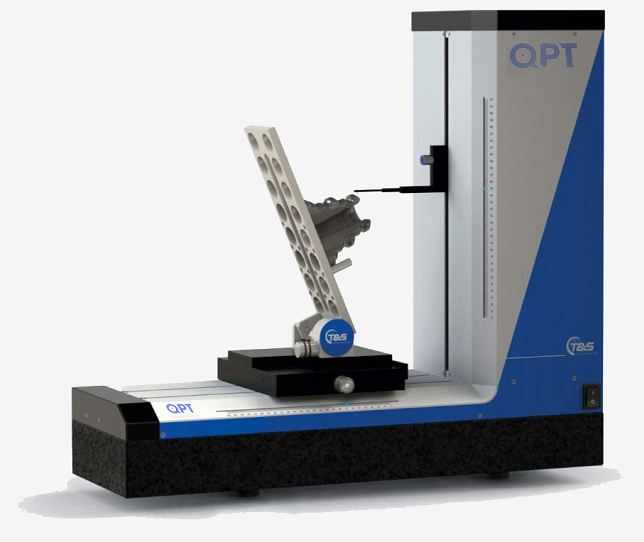

QPT-TS system by X, Z two motor control measuring shaft with high quality tooling to achieve rapid measurement of contour, diameter, roughness. The super stability and durability of the product is the breakthrough of technical innovation.

The technical features

Robust mechanical body
High quality granite guideway
The electric adjustable table automatically finds inflection points
0.1-3mm/s adjustable measurement speed
No complex card, simple operation process
The whole process of absolute measurement, improve the measurement efficiency
Constant dynamic speed control. (The distance between data points remains the same whether the contour is tilted or not)
Data logging and control through a standard interface can be replaced with computers to ensure future use and independence.
The unique horizontal positioning of the tracking arm allows easy and safe measurement of the workpiece at any time.

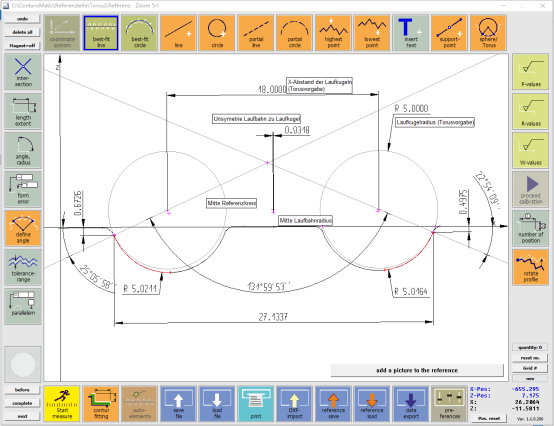

Software compatible with Wi10/64 and Wi7/64 bits
