JBO is the largest manufacturer of thread measuring and processing equipment in Europe. Its products include thread reading gauge, thread depth gauge and electric thread depth gauge. At present, JBO provides thread measuring tools for the world famous machinery manufacturing enterprises.



Product features

A single thread gauge measures both thread diameter and depth
The thread detection cycle is shortened by 50%
Constant torque, by setting, easy to operate, can be set: left/right rotation, torque, set lock, through hole (reaches the measurement depth automatically stop)
The efficiency of constant torque detection is 5 times that of manual measurement
Thread depth measurement range up to 4 times the thread diameter, up to 50mm (special requirements can be customized)
The thread depth data is automatically read and uploaded by digital display device
Probe and sleeve can be quickly changed, suitable for measuring a variety of thread sizes
Probe hardening treatment
Long-life standard threaded probe with DLC coating, surface hardness Hv 0.05> 5000

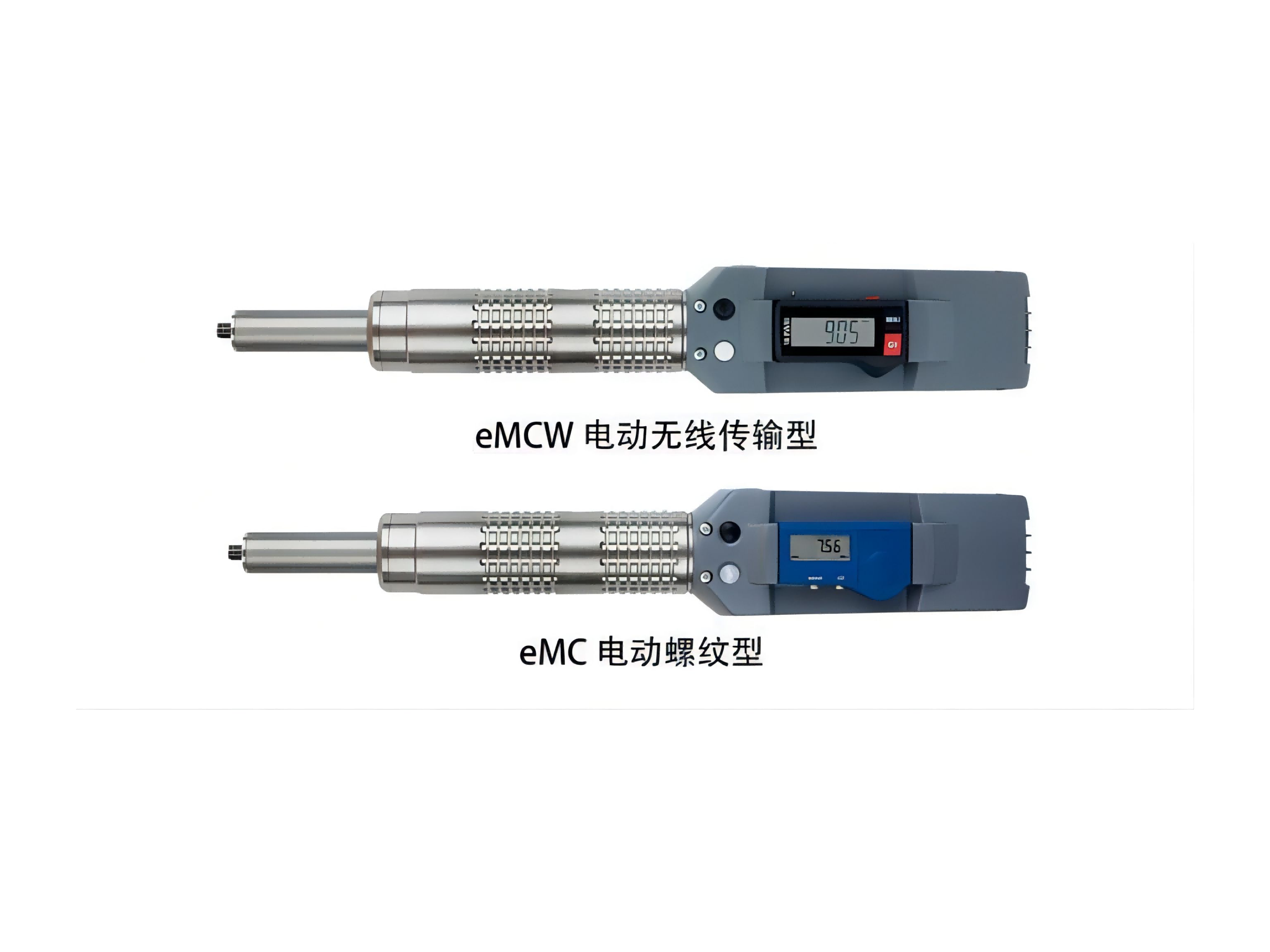

Support for Wireless Transmission (eMCW)
Data can be wirelessly output to computer system (wireless receiver i-stick is purchased separately)
