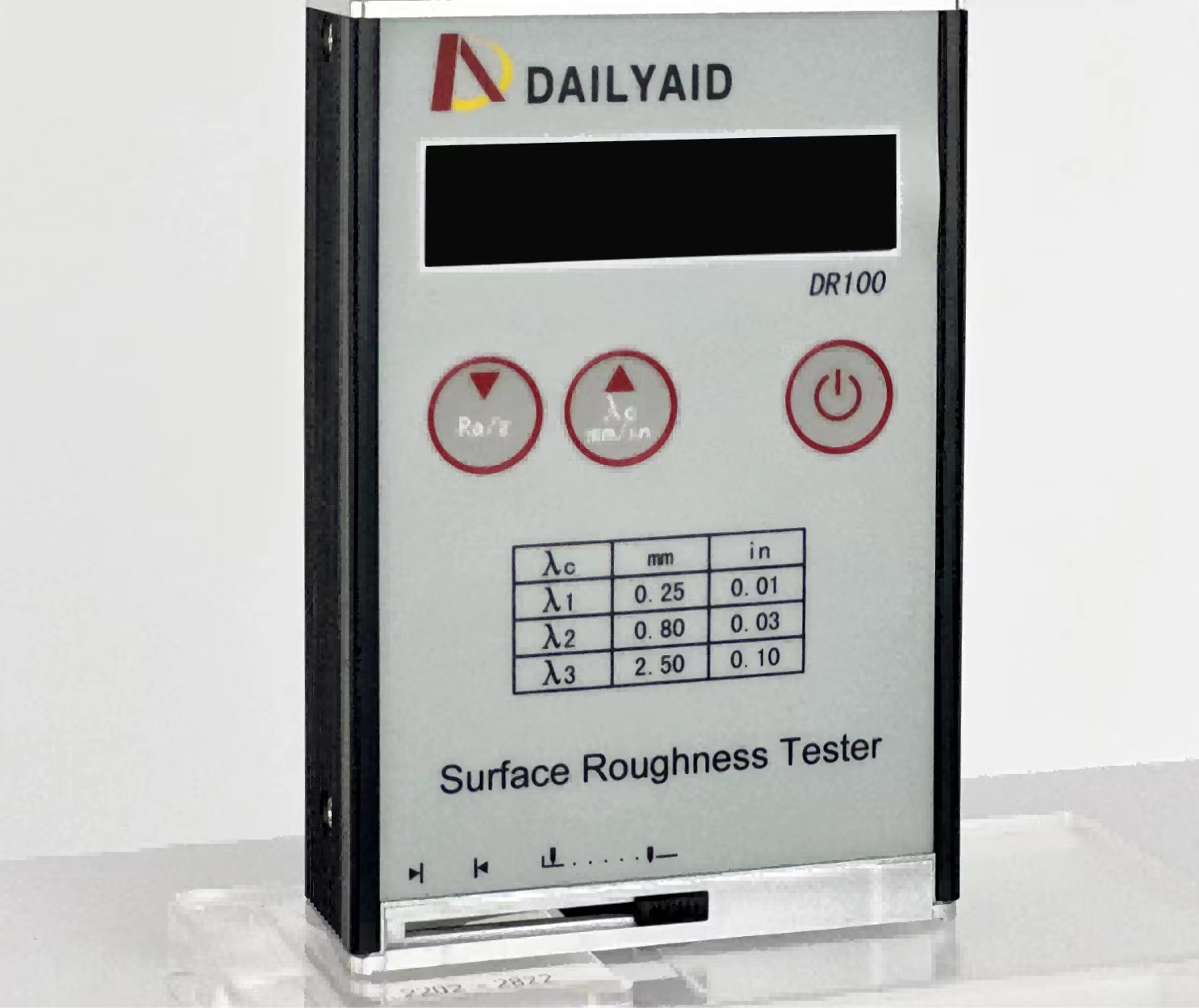

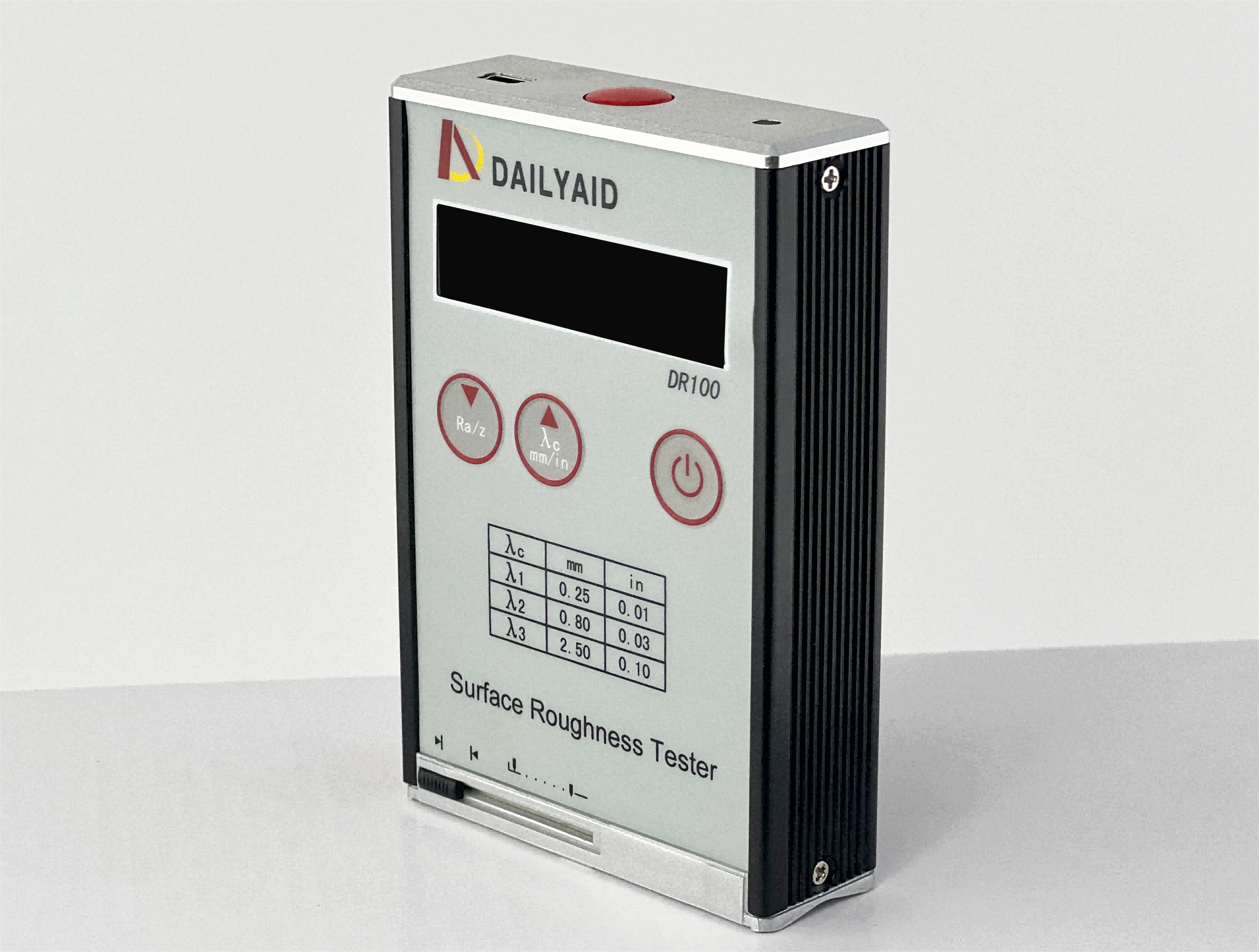

DR100 high precision roughness meter is a hand-held instrument suitable for the production site environment and mobile measurement needs. It can not only measure the plane, the outer circular surface and cone surface with diameter greater than 20mm (empirical value), but also measure the grooves with length and width greater than 80×30mm.

Use a function

Metallic and non-metallic workpiece surface roughness detection;
A variety of machining parts, machining manufacturing, testing, commodity inspection, etc.;
Field inspection of large workpiece and production line;
Inspection, measurement, commodity inspection and other departments out of the inspection, will not damage the workpiece.

Industries involved

Machining, auto parts, transmission device, hydraulic machine tools, machine tool accessories, rolls, axles, mold casting, textile machinery, medical machinery and other industries.

The instrument features

A variety of measurement parameters Ra, Rz, Rq, Rt;
The calibration sample block is made of optical glass matrix, identified by National Metrology Institute, with high precision, not easy to scratch and long service life
With calibration function, simple operation;
Using high speed DSP processor for data processing and calculation, the speed is fast and the precision is higher.
Dot matrix OLED liquid crystal display, high brightness, no viewing Angle, wide temperature, suitable for various occasions;
The automatic shutdown function and low power hardware and software design make the instrument work for a long time;

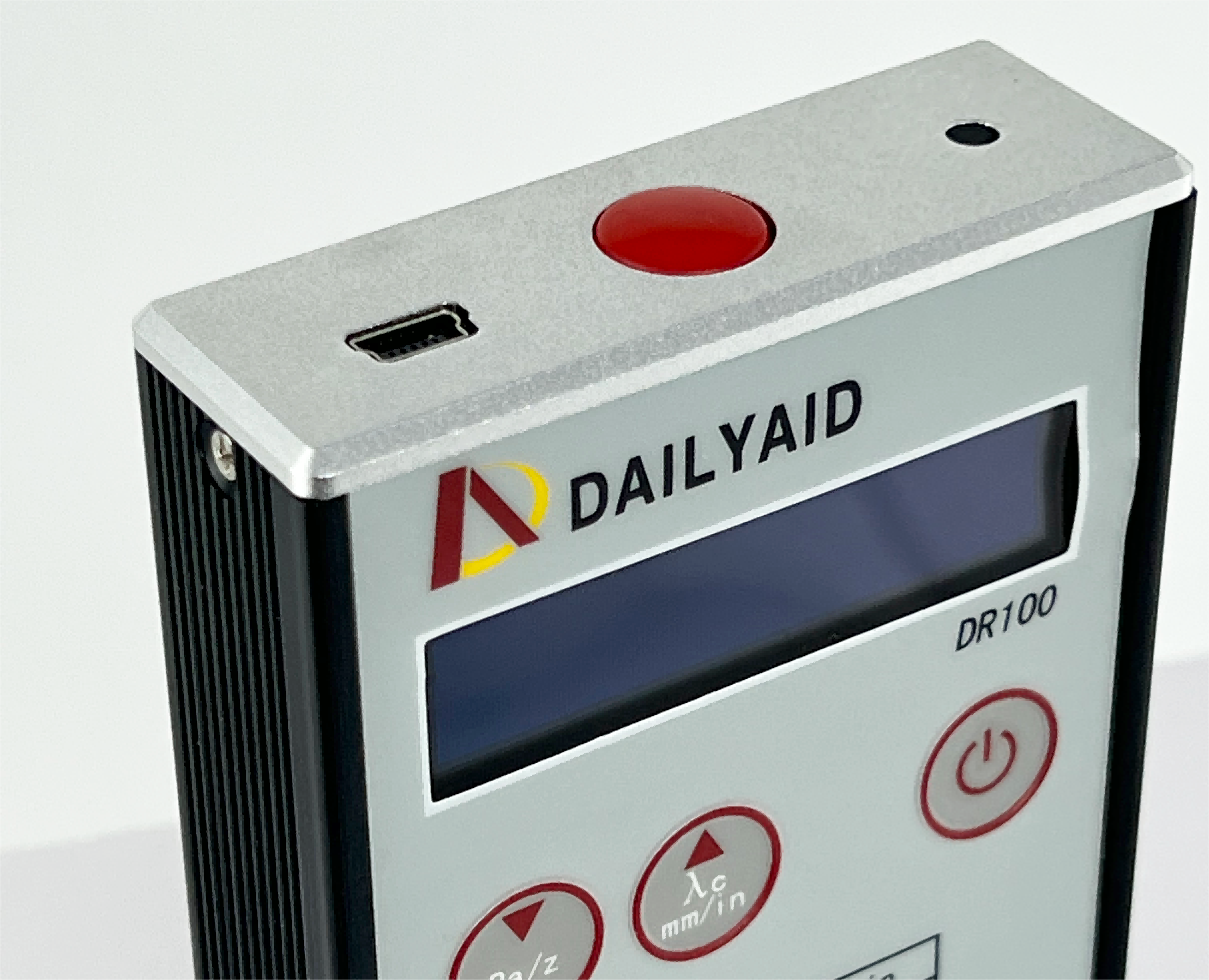

Two charging methods, special charger or computer USB port charging, charging while working convenient and fast;
The sensor probe has a protection door, which can effectively protect the sensor probe and ensure the accuracy of measurement.
The shape is drawn aluminum mold design, durable, anti-electromagnetic interference ability is remarkable, in line with the new trend of today's design.

The standard configuration

Main machine of roughness meter

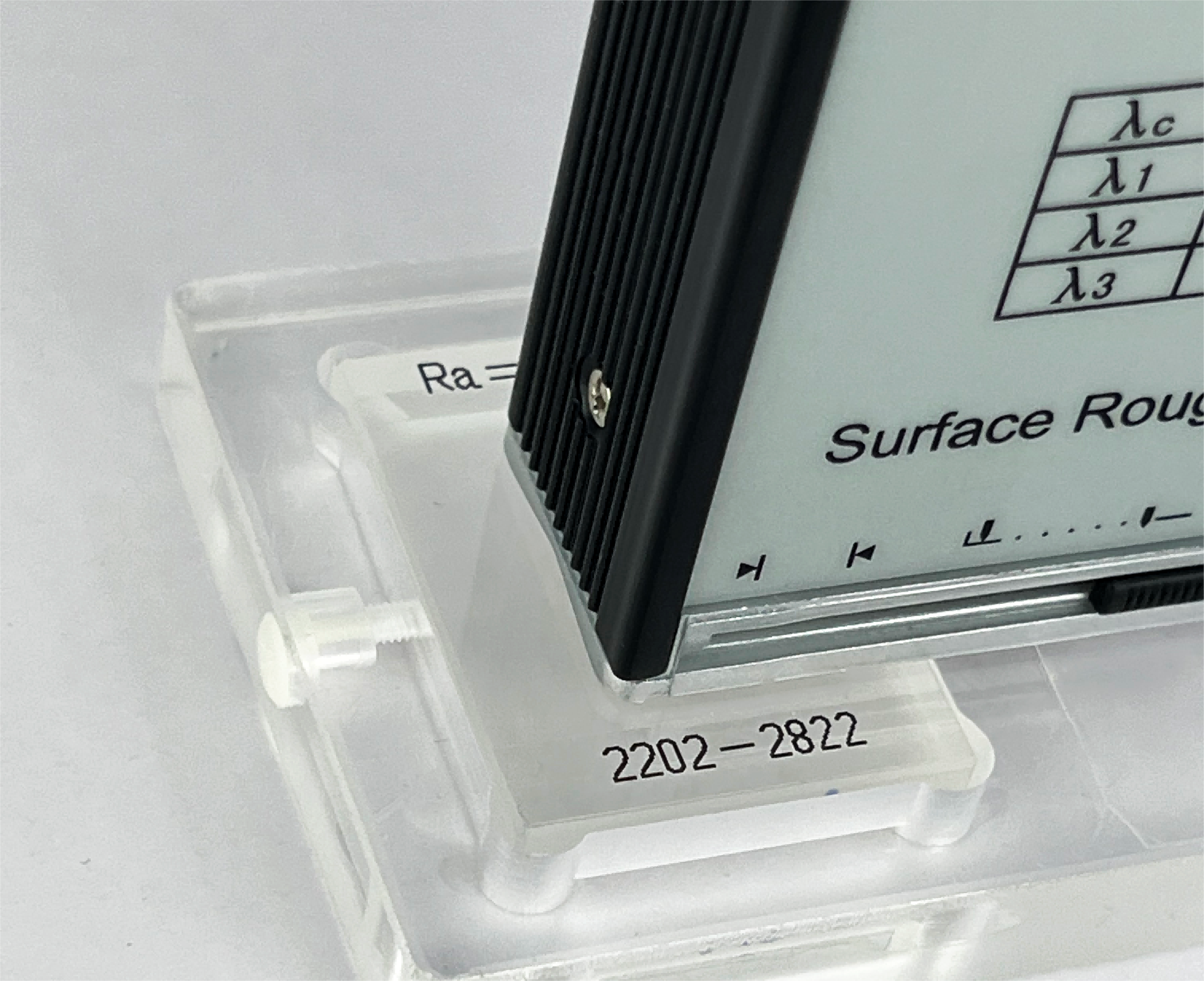

The calibration block
Block stents
The charger
The USB communication line
Instruction manual
Certificate of approval
Warranty card
Instrument box
Warranty period: 2 years
