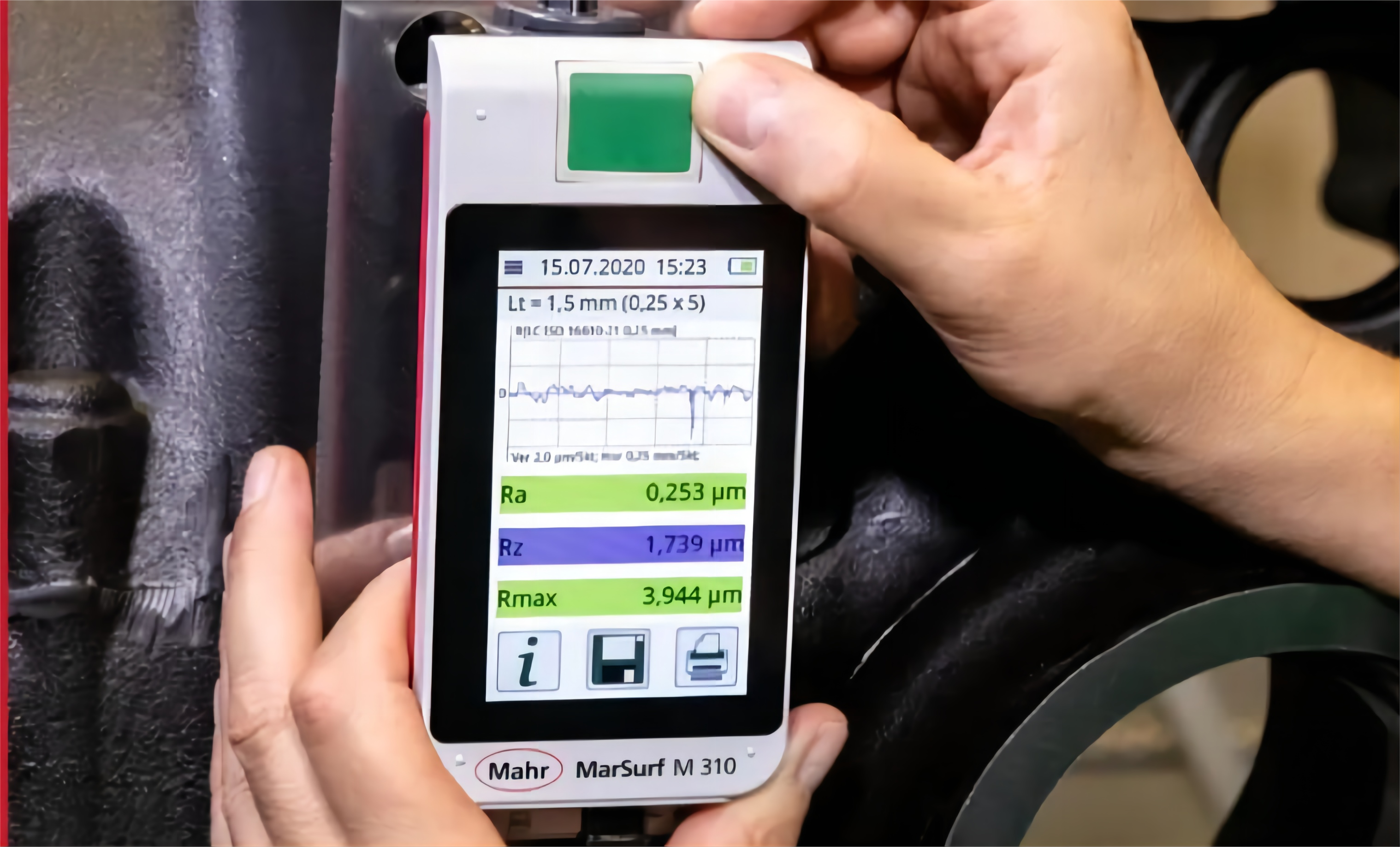

Portable compact roughness measuring instrument;
Simple and intuitive: as easy as using a smartphone;
Large, bright 4.3 "TFT touch display;
Data can be stored in the format of TXT, X3P, CSV or PDF files.
The measurement protocol and data can be transmitted via Bluetooth or data cable.
MarConnect complies with IATF 16949 and is traceable;
Print directly on a mobile printer;
Create a complete PDF measurement record directly in the measuring instrument;
Micro-USB interface for remote control through ASCII commands, such as statistical process control through software or remote start control for automation solutions;
Display and print of MRC and ADC curves;
Store measurement procedures (fast and simple);
The parameters of the cutting line C of the eigenvalues Rmr and tp are expressed as μm or % of Rz;
Independent operation of the main machine: more than 1200 times of measurement;
Integrated solution, small size, light weight (about 500g);
Flexible application, detachable drive unit;
31 parameters: provide the same range of functions as laboratory instruments;
Built-in roughness standard sample block;
You can quickly access frequently used features through the favorites list in the display;
Automatic cut-off wavelength selection, even non-professionals can ensure the correct measurement results;
Additional versions (lateral drive unit) are available with MarSurf M310 C2;

application

For shaft and housing components
Used of large machines.
For large workpieces
Used for milling and rotating workpieces
Used for grinding and grinding workpiece
In the production line or directly in the machine, it is the ideal equipment to quickly detect the surface roughness of the workpiece
